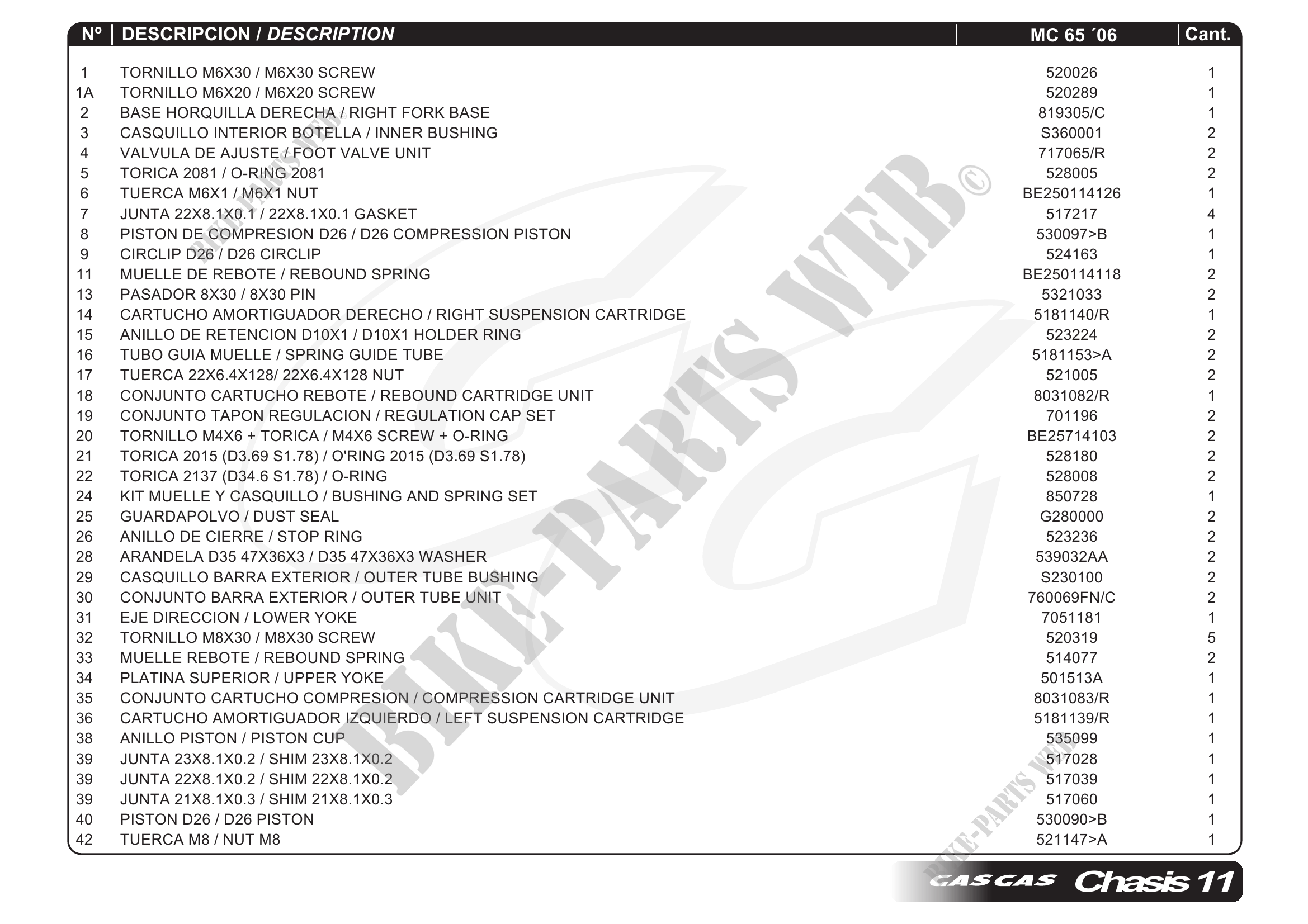

N DESCRIPCION / DESCRIPTION MC 65 ´06 Cant.
1 TORNILLO M6X30 / M6X30 SCREW 520026 1
1A TORNILLO M6X20 / M6X20 SCREW 520289 1
2 BASE HORQUILLA DERECHA / RIGHT FORK BASE 819305/C 1
3 CASQUILLO INTERIOR BOTELLA / INNER BUSHING S360001 2
4 VALVULA DE AJUSTE / FOOT VALVE UNIT 717065/R 2
5 TORICA 2081 / O-RING 2081 528005 2
6 TUERCA M6X1 / M6X1 NUT BE250114126 1
7 JUNTA 22X8.1X0.1 / 22X8.1X0.1 GASKET 517217 4
8 PISTON DE COMPRESION D26 / D26 COMPRESSION PISTON 530097>B 1
9 CIRCLIP D26 / D26 CIRCLIP 524163 1
11 MUELLE DE REBOTE / REBOUND SPRING BE250114118 2
13 PASADOR 8X30 / 8X30 PIN 5321033 2
14 CARTUCHO AMORTIGUADOR DERECHO / RIGHT SUSPENSION CARTRIDGE 5181140/R 1
15 ANILLO DE RETENCION D10X1 / D10X1 HOLDER RING 523224 2
16 TUBO GUIA MUELLE / SPRING GUIDE TUBE 5181153>A 2
17 TUERCA 22X6.4X128/ 22X6.4X128 NUT 521005 2
18 CONJUNTO CARTUCHO REBOTE / REBOUND CARTRIDGE UNIT 8031082/R 1
19 CONJUNTO TAPON REGULACION / REGULATION CAP SET 701196 2
20 TORNILLO M4X6 + TORICA / M4X6 SCREW + O-RING BE25714103 2
21 TORICA 2015 (D3.69 S1.78) / O'RING 2015 (D3.69 S1.78) 528180 2
22 TORICA 2137 (D34.6 S1.78) / O-RING 528008 2
24 KIT MUELLE Y CASQUILLO / BUSHING AND SPRING SET 850728 1
25 GUARDAPOLVO / DUST SEAL G280000 2
26 ANILLO DE CIERRE / STOP RING 523236 2
28 ARANDELA D35 47X36X3 / D35 47X36X3 WASHER 539032AA 2
29 CASQUILLO BARRA EXTERIOR / OUTER TUBE BUSHING S230100 2
30 CONJUNTO BARRA EXTERIOR / OUTER TUBE UNIT 760069FN/C 2
31 EJE DIRECCION / LOWER YOKE 7051181 1
32 TORNILLO M8X30 / M8X30 SCREW 520319 5
33 MUELLE REBOTE / REBOUND SPRING 514077 2
34 PLATINA SUPERIOR / UPPER YOKE 501513A 1
35 CONJUNTO CARTUCHO COMPRESION / COMPRESSION CARTRIDGE UNIT 8031083/R 1
36 CARTUCHO AMORTIGUADOR IZQUIERDO / LEFT SUSPENSION CARTRIDGE 5181139/R 1
38 ANILLO PISTON / PISTON CUP 535099 1
39 JUNTA 23X8.1X0.2 / SHIM 23X8.1X0.2 517028 1
39 JUNTA 22X8.1X0.2 / SHIM 22X8.1X0.2 517039 1
39 JUNTA 21X8.1X0.3 / SHIM 21X8.1X0.3 517060 1
40 PISTON D26 / D26 PISTON 530090>B 1
42 TUERCA M8 / NUT M8 521147>A 1
Chasis11
