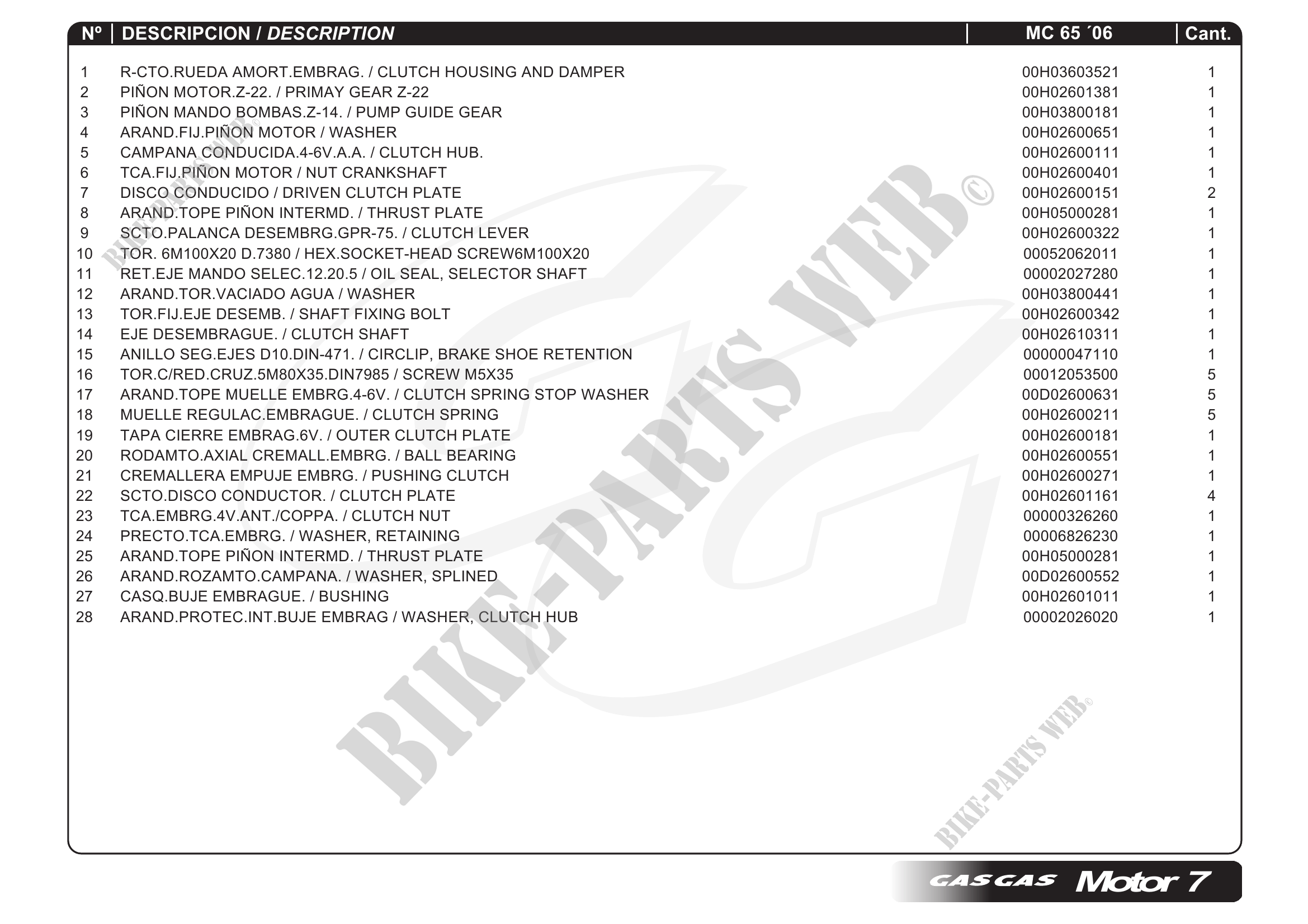

N DESCRIPCION / DESCRIPTION MC 65 ´06 Cant.
1 R-CTO.RUEDA AMORT.EMBRAG. / CLUTCH HOUSING AND DAMPER 00H03603521 1
2 PION MOTOR.Z-22. / PRIMAY GEAR Z-22 00H02601381 1
3 PION MANDO BOMBAS.Z-14. / PUMP GUIDE GEAR 00H03800181 1
4 ARAND.FIJ.PION MOTOR / WASHER 00H02600651 1
5 CAMPANA CONDUCIDA.4-6V.A.A. / CLUTCH HUB. 00H02600111 1
6 TCA.FIJ.PION MOTOR / NUT CRANKSHAFT 00H02600401 1
7 DISCO CONDUCIDO / DRIVEN CLUTCH PLATE 00H02600151 2
8 ARAND.TOPE PION INTERMD. / THRUST PLATE 00H05000281 1
9 SCTO.PALANCA DESEMBRG.GPR-75. / CLUTCH LEVER 00H02600322 1
10 TOR. 6M100X20 D.7380 / HEX.SOCKET-HEAD SCREW6M100X20 00052062011 1
11 RET.EJE MANDO SELEC.12.20.5 / OIL SEAL, SELECTOR SHAFT 00002027280 1
12 ARAND.TOR.VACIADO AGUA / WASHER 00H03800441 1
13 TOR.FIJ.EJE DESEMB. / SHAFT FIXING BOLT 00H02600342 1
14 EJE DESEMBRAGUE. / CLUTCH SHAFT 00H02610311 1
15 ANILLO SEG.EJES D10.DIN-471. / CIRCLIP, BRAKE SHOE RETENTION 00000047110 1
16 TOR.C/RED.CRUZ.5M80X35.DIN7985 / SCREW M5X35 00012053500 5
17 ARAND.TOPE MUELLE EMBRG.4-6V. / CLUTCH SPRING STOP WASHER 00D02600631 5
18 MUELLE REGULAC.EMBRAGUE. / CLUTCH SPRING 00H02600211 5
19 TAPA CIERRE EMBRAG.6V. / OUTER CLUTCH PLATE 00H02600181 1
20 RODAMTO.AXIAL CREMALL.EMBRG. / BALL BEARING 00H02600551 1
21 CREMALLERA EMPUJE EMBRG. / PUSHING CLUTCH 00H02600271 1
22 SCTO.DISCO CONDUCTOR. / CLUTCH PLATE 00H02601161 4
23 TCA.EMBRG.4V.ANT./COPPA. / CLUTCH NUT 00000326260 1
24 PRECTO.TCA.EMBRG. / WASHER, RETAINING 00006826230 1
25 ARAND.TOPE PION INTERMD. / THRUST PLATE 00H05000281 1
26 ARAND.ROZAMTO.CAMPANA. / WASHER, SPLINED 00D02600552 1
27 CASQ.BUJE EMBRAGUE. / BUSHING 00H02601011 1
28 ARAND.PROTEC.INT.BUJE EMBRAG / WASHER, CLUTCH HUB 00002026020 1
Motor 7
