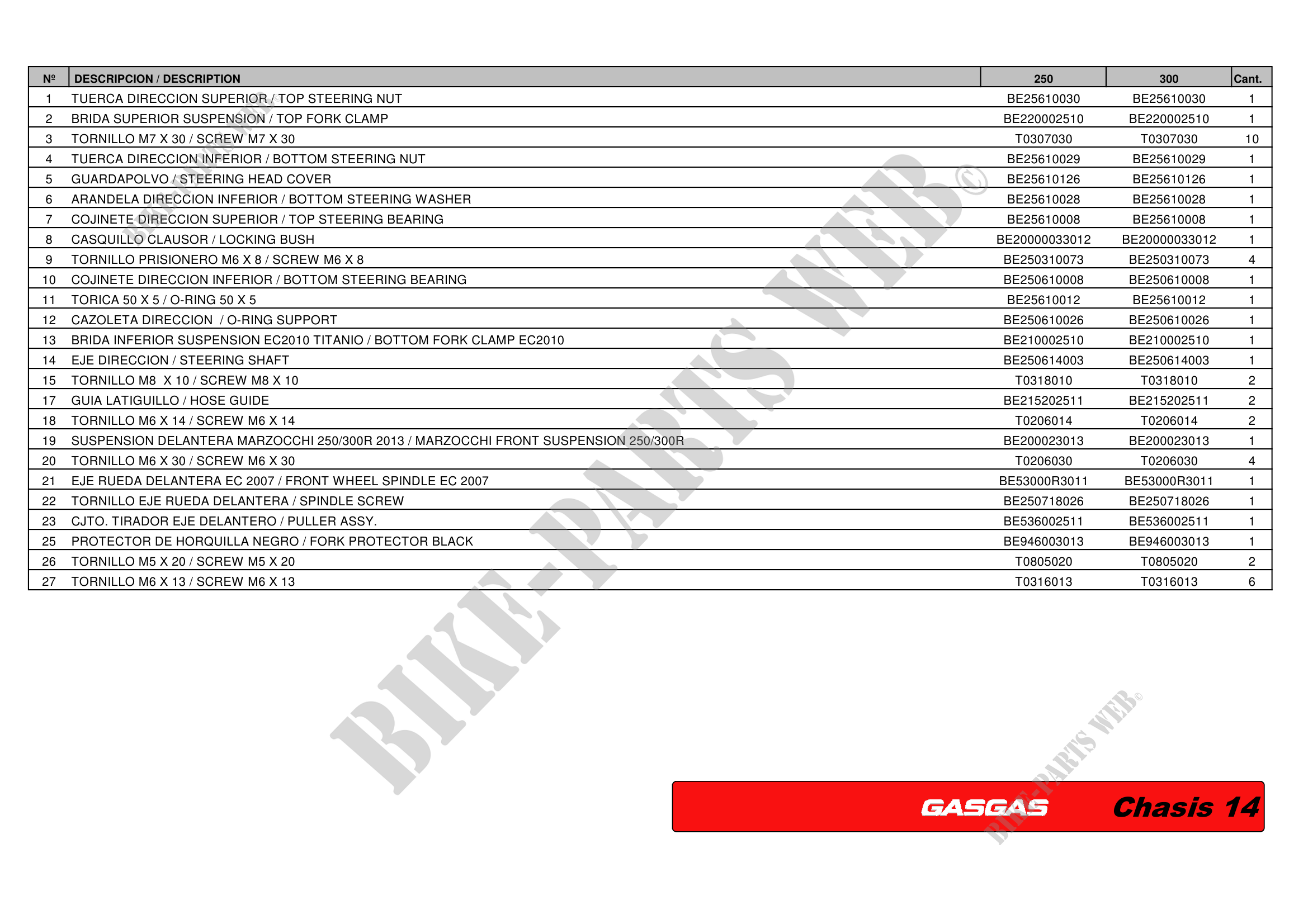

N DESCRIPCION / DESCRIPTION 250 300 Cant.
1 TUERCA DIRECCION SUPERIOR / TOP STEERING NUT BE25610030 BE25610030 1
2 BRIDA SUPERIOR SUSPENSION / TOP FORK CLAMP BE220002510 BE220002510 1
3 TORNILLO M7 X 30 / SCREW M7 X 30 T0307030 T0307030 10
4 TUERCA DIRECCION INFERIOR / BOTTOM STEERING NUT BE25610029 BE25610029 1
5 GUARDAPOLVO / STEERING HEAD COVER BE25610126 BE25610126 1
6 ARANDELA DIRECCION INFERIOR / BOTTOM STEERING WASHER BE25610028 BE25610028 1
7 COJINETE DIRECCION SUPERIOR / TOP STEERING BEARING BE25610008 BE25610008 1
8 CASQUILLO CLAUSOR / LOCKING BUSH BE20000033012 BE20000033012 1
9 TORNILLO PRISIONERO M6 X 8 / SCREW M6 X 8 BE250310073 BE250310073 4
10 COJINETE DIRECCION INFERIOR / BOTTOM STEERING BEARING BE250610008 BE250610008 1
11 TORICA 50 X 5 / O-RING 50 X 5 BE25610012 BE25610012 1
12 CAZOLETA DIRECCION / O-RING SUPPORT BE250610026 BE250610026 1
13 BRIDA INFERIOR SUSPENSION EC2010 TITANIO / BOTTOM FORK CLAMP EC2010 BE210002510 BE210002510 1
14 EJE DIRECCION / STEERING SHAFT BE250614003 BE250614003 1
15 TORNILLO M8 X 10 / SCREW M8 X 10 T0318010 T0318010 2
17 GUIA LATIGUILLO / HOSE GUIDE BE215202511 BE215202511 2
18 TORNILLO M6 X 14 / SCREW M6 X 14 T0206014 T0206014 2
19 SUSPENSION DELANTERA MARZOCCHI 250/300R 2013 / MARZOCCHI FRONT SUSPENSION 250/300R BE200023013 BE200023013 1
20 TORNILLO M6 X 30 / SCREW M6 X 30 T0206030 T0206030 4
21 EJE RUEDA DELANTERA EC 2007 / FRONT WHEEL SPINDLE EC 2007 BE53000R3011 BE53000R3011 1
22 TORNILLO EJE RUEDA DELANTERA / SPINDLE SCREW BE250718026 BE250718026 1
23 CJTO. TIRADOR EJE DELANTERO / PULLER ASSY. BE536002511 BE536002511 1
25 PROTECTOR DE HORQUILLA NEGRO / FORK PROTECTOR BLACK BE946003013 BE946003013 1
26 TORNILLO M5 X 20 / SCREW M5 X 20 T0805020 T0805020 2
27 TORNILLO M6 X 13 / SCREW M6 X 13 T0316013 T0316013 6
Chasis 14
