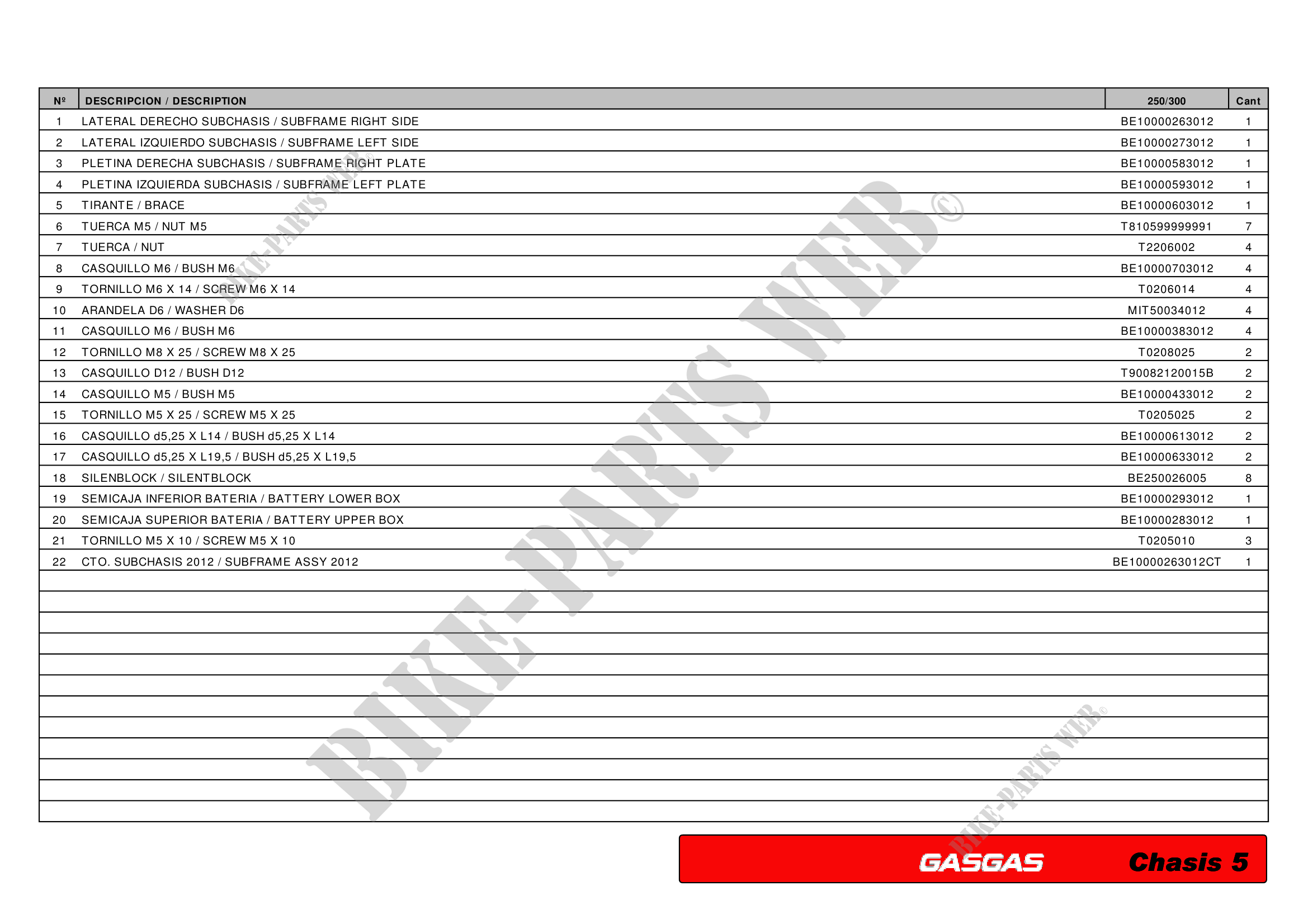

N DESCRIPCION / DESCRIPTION 250/300 Cant
1 LATERAL DERECHO SUBCHASIS / SUBFRAME RIGHT SIDE BE10000263012 1
2 LATERAL IZQUIERDO SUBCHASIS / SUBFRAME LEFT SIDE BE10000273012 1
3 PLETINA DERECHA SUBCHASIS / SUBFRAME RIGHT PLATE BE10000583012 1
4 PLETINA IZQUIERDA SUBCHASIS / SUBFRAME LEFT PLATE BE10000593012 1
5 TIRANTE / BRACE BE10000603012 1
6 TUERCA M5 / NUT M5 T810599999991 7
7 TUERCA / NUT T2206002 4
8 CASQUILLO M6 / BUSH M6 BE10000703012 4
9 TORNILLO M6 X 14 / SCREW M6 X 14 T0206014 4
10 ARANDELA D6 / WASHER D6 MIT50034012 4
11 CASQUILLO M6 / BUSH M6 BE10000383012 4
12 TORNILLO M8 X 25 / SCREW M8 X 25 T0208025 2
13 CASQUILLO D12 / BUSH D12 T90082120015B 2
14 CASQUILLO M5 / BUSH M5 BE10000433012 2
15 TORNILLO M5 X 25 / SCREW M5 X 25 T0205025 2
16 CASQUILLO d5,25 X L14 / BUSH d5,25 X L14 BE10000613012 2
17 CASQUILLO d5,25 X L19,5 / BUSH d5,25 X L19,5 BE10000633012 2
18 SILENBLOCK / SILENTBLOCK BE250026005 8
19 SEMICAJA INFERIOR BATERIA / BATTERY LOWER BOX BE10000293012 1
20 SEMICAJA SUPERIOR BATERIA / BATTERY UPPER BOX BE10000283012 1
21 TORNILLO M5 X 10 / SCREW M5 X 10 T0205010 3
22 CTO. SUBCHASIS 2012 / SUBFRAME ASSY 2012 BE10000263012CT 1
Chasis 5
